Spares & Parts

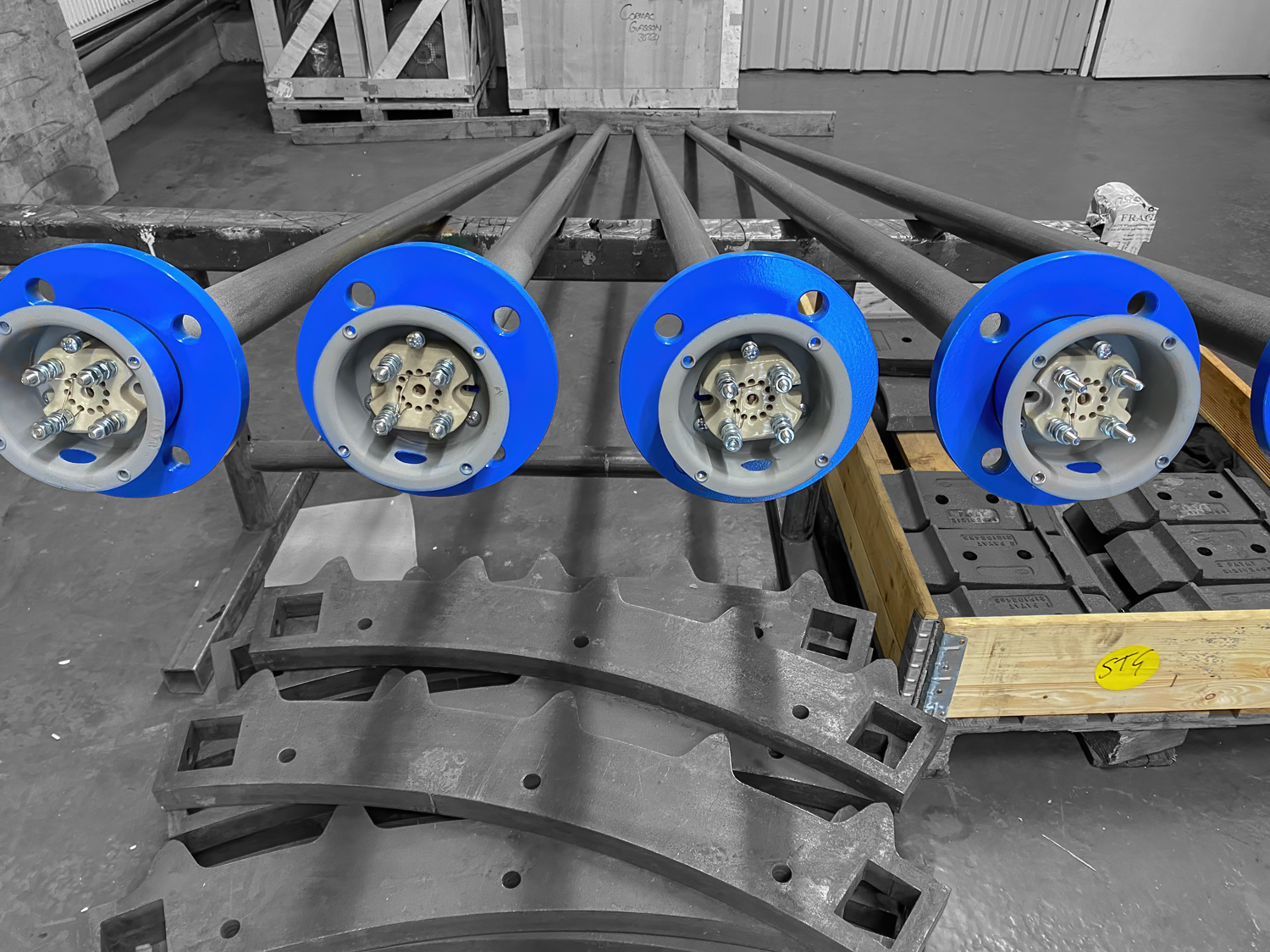

Z-Type

Heating Elements

We supply a range of Pressure Sustaining/Retaining Valves and Pressure Relief Valves along with standard pipe valves.

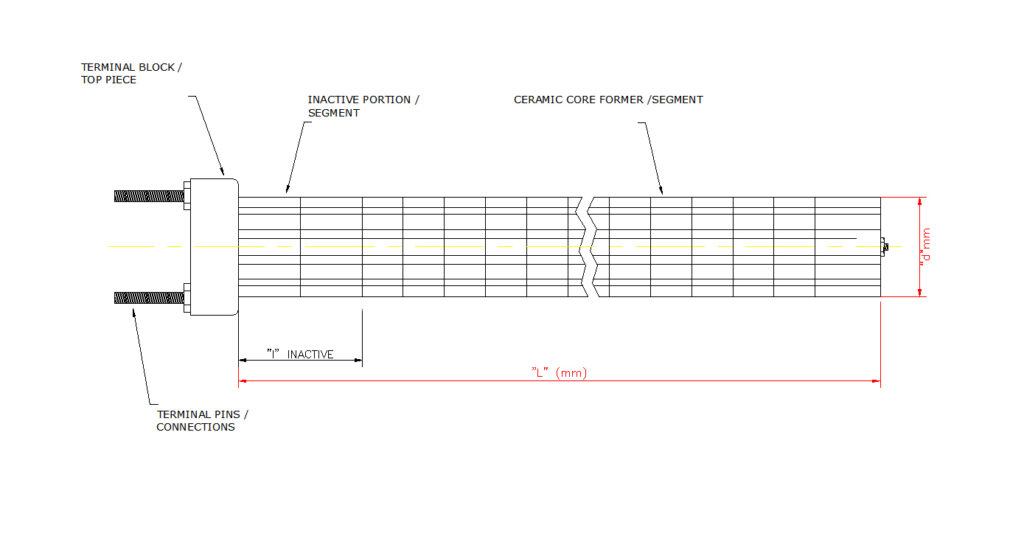

The first illustration shows a typical ceramic heating element.
These are manufactured using ceramic “bobbins” or segments which, when assembled can form a core of varying length.
The segments are shaped to allow a resistance wire to pass through and be terminated at one end of the element, called the terminal block. This is normally made of a different and stronger material than the segments. Resistance is calculated to produce a specified heat output with respect to the fluid being heated.

Spares & Parts

Spares and Other Products

Spares & Parts. We manufacture and supply spare heating elements of all types for our equipment. Typically these are removable core type but we also supply rod type elements for those heaters which have removable items fitted.

Cant find what your looking for?

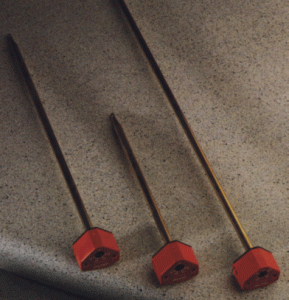

Thermostats

We provide a range of spare thermostats for our products and those of others, comprising standard rod type, capillary type, thermocouple and PT100 types

Control Panels

Providing the link between our heater equipment and your power supply to whatever specification you require built in-house.

Thermometers

We supply standard mechanical Thermometers with a temperature range applicable to the process involved.

Pressure Gauges

We supply Pressure Gauges with a pressure range appropriate to the process involved.

Pumps and Pump Spares

We provide a range of pump equipment, either fully built up on a skid or spare parts to suit a number of different manufacturers equipment such as Albany, CAT and MONO

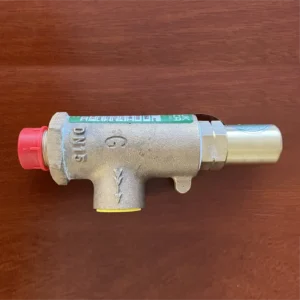

Valves

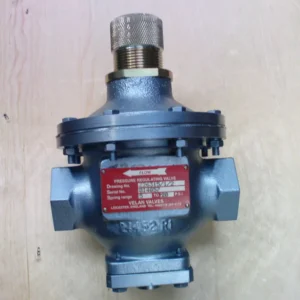

We supply a range of standard Pipework Valves, Pressure Sustaining (Zwicky/Velan) and Pressure Relief Valves in Gunmetal or Stainless Steel, to suit the application.

Heating Elements

The first illustration shows a typical ceramic heating element. These are manufactured using ceramic “bobbins” or segments which, when assembled can form a core of varying length. The segments are shaped to allow a resistance wire to pass through and be terminated at one end of the element, called the terminal block. This is normally made of a different and stronger material than the segments. Resistance is calculated to produce a specified heat output with respect to the fluid being heated.
Spares & Parts

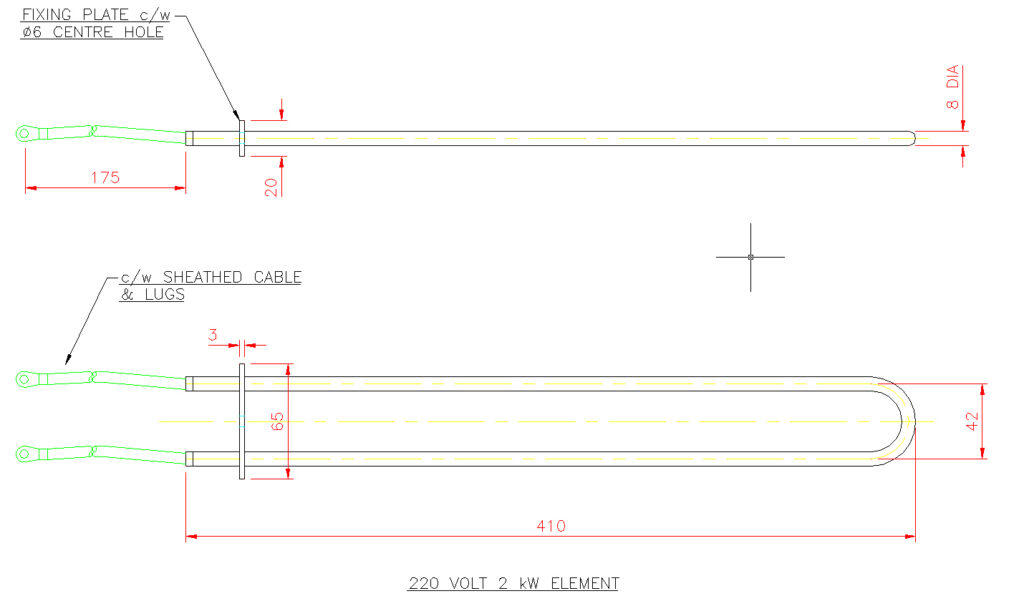

We can supply a rod type alternative to the ceramic type element, typically used in situations where space is at a premium or the working fluid is more suited to the type.

Spares & Parts

The primary advantage of the rod type is the capacity to bend into a shape suitable for the process, as can be seen from older style cooking hob appliances using circular shapes.

Spares & Parts

Oil Filters

We supply a range of oil filtration equipment :

Single Filter OV Equipment from AIRPEL is listed HERE
Dual Filter OW Equipment from AIRPEL is listed HERE

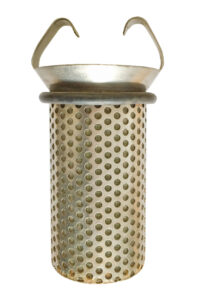

From “O” rings of any type to filter baskets and complete filter systems.

Thermometers

We normally provide thermometers with our outflow and in-line heaters as standard. A typical version is shown below, we offer this and other styles whether remote, digital, capillary, versions with dial contacts, Stainless Steel, ATEX, on request.
Please enquire for price and delivery.

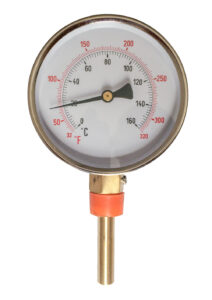

100mm Dial Thermometer 0-160ºC

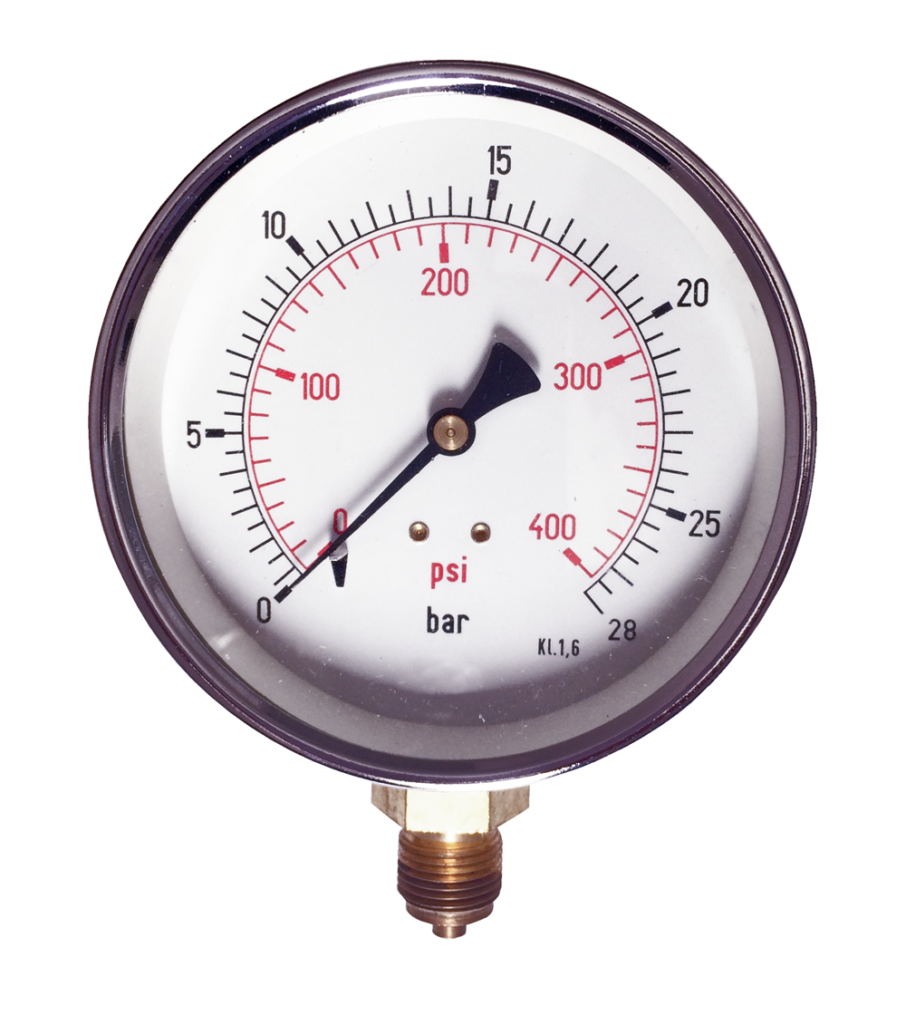

Pressure Gauges

Typical spares for progressive cavity (Mono) pump
Spares available for most other oil pumps.

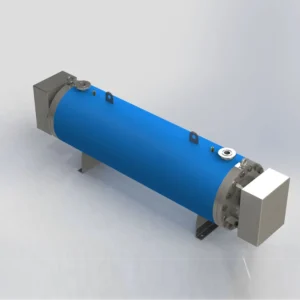

Thermal Oil Heaters

We manufacture Electric Thermal Oil heaters as special equipment.

Please check in with us, giving as much detail as you can, to allow us to quote for your requirements.

More information will be placed on this page soon.

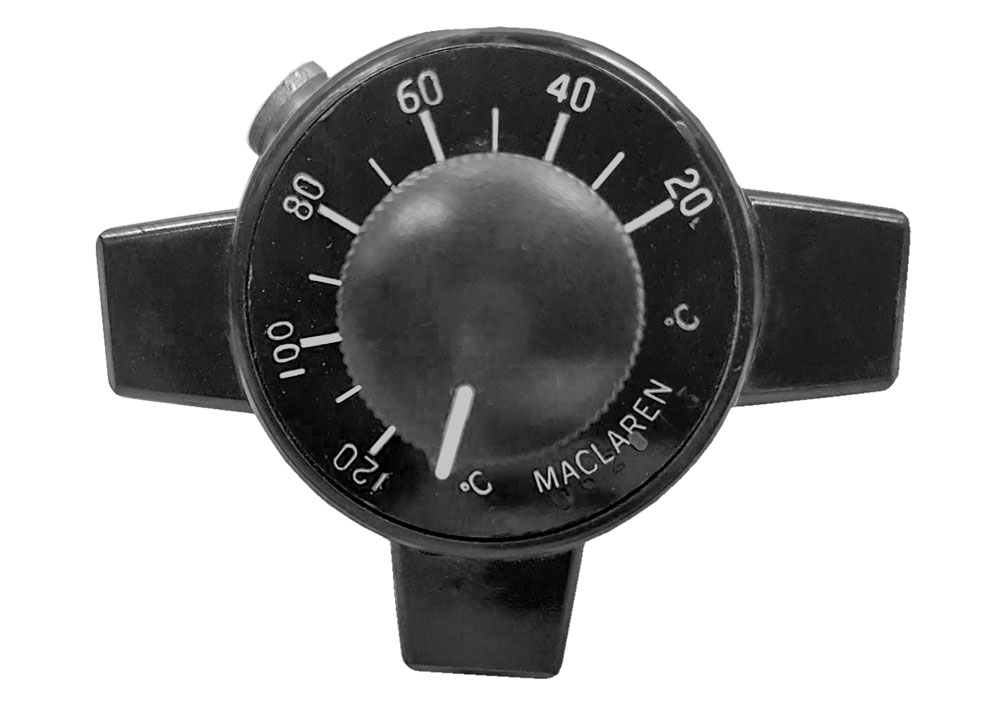

Maclaren Thermostat Data Sheet HERE

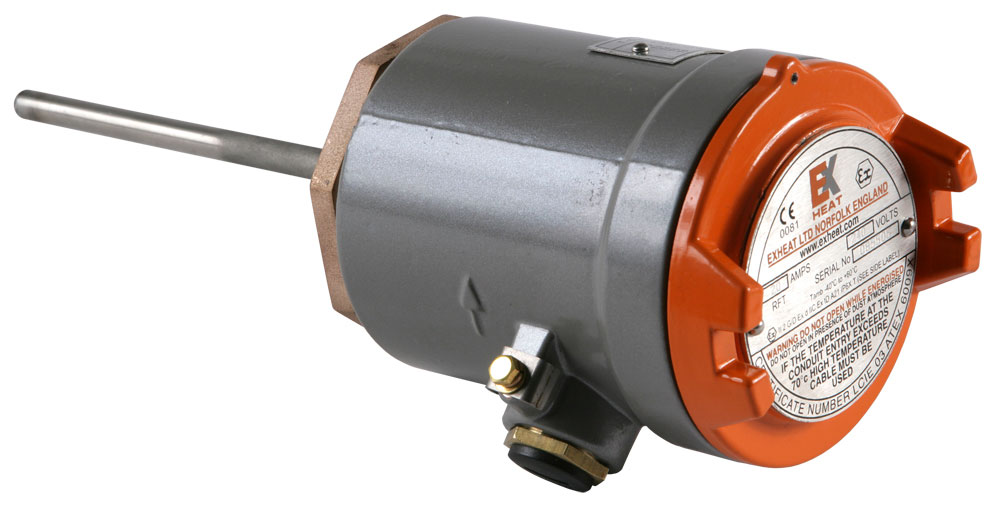

Thermostats

Thermostats are an integral part of nearly every form of heating equipment, whether industrial or domestic.

Industrial thermostats must be reliable and robust over far greater operational ranges, environmental conditions, and usually be easily replaceable, all at a reasonable cost. Mechanical designs still commonly in use today are proven over decades and there is no sign of these instruments becoming obsolete.

Electronic thermostats are usually a combination of a simple controller and either PT100 or RTD sensor.

Maclaren Thermostat Data Sheet HERE

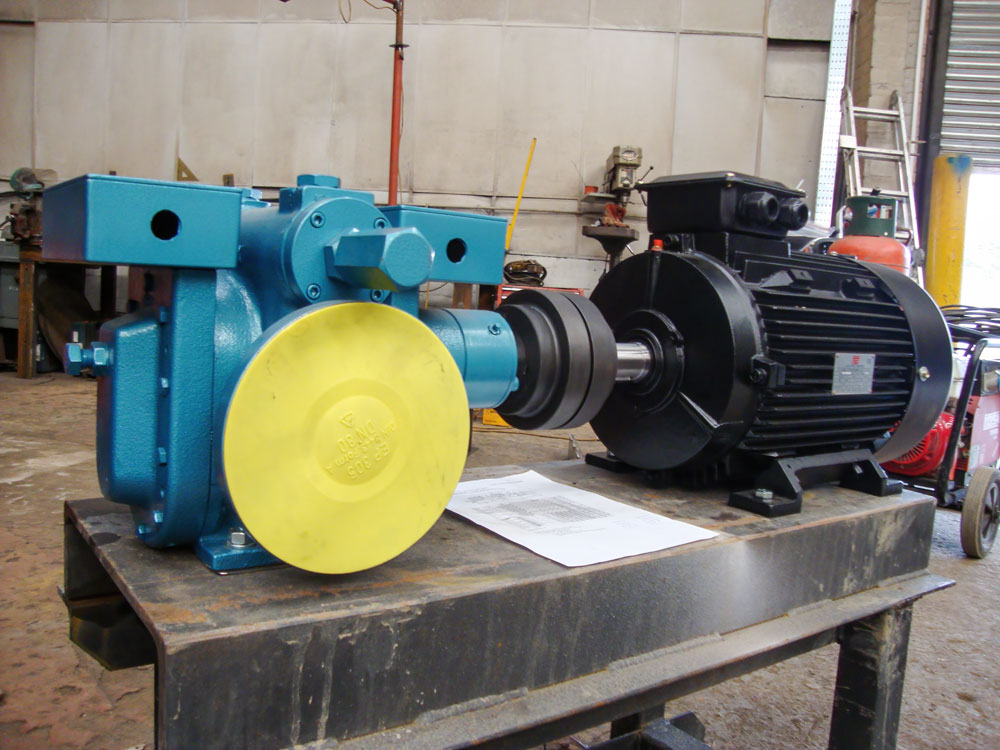

Pumps

We supply a wide range of pumps from reputable suppliers.

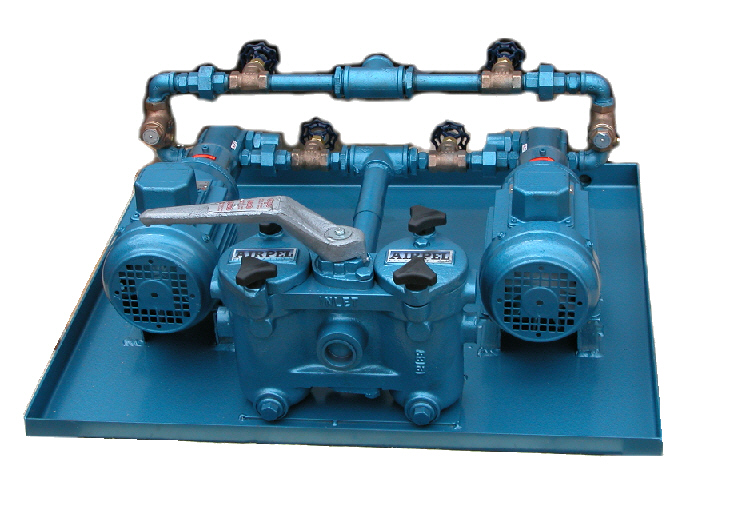

Shown here a duplex pump/filter skid from Albany Pumps.
Their 40 Series catalogue is HERE

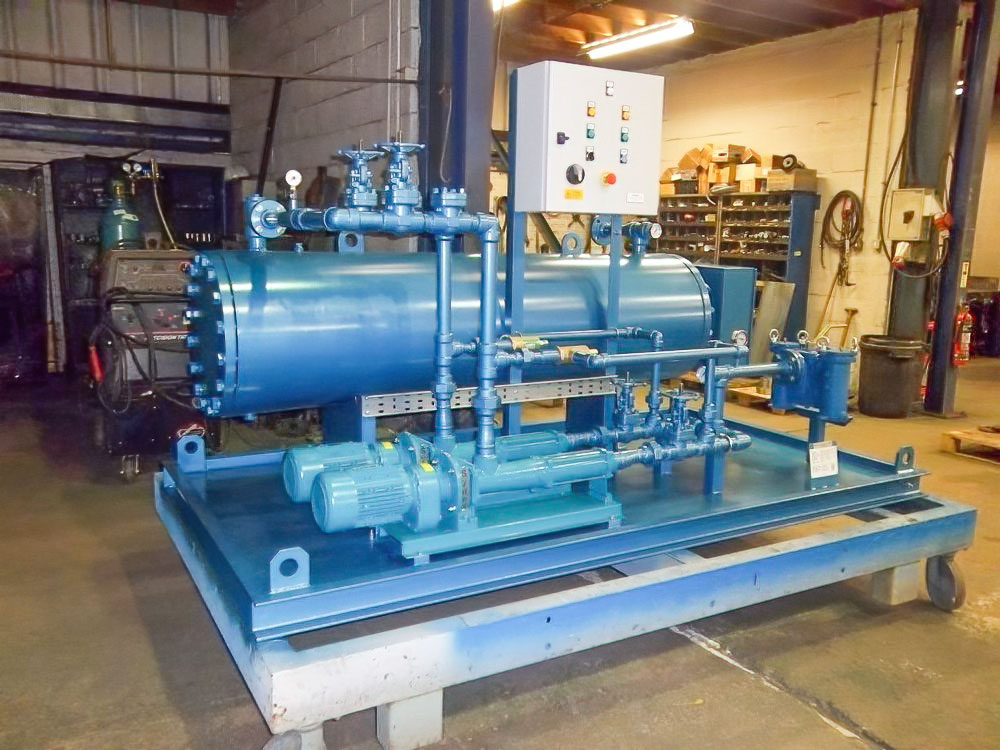

Pumping and Heating Skid System

Control Panels

We manufacture control panels in-house for virtually all applications.

Our panels are capable of working with the latest electronic controllers or standard mechanical thermostats.

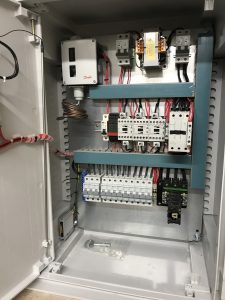

Typical Panel View – Interior

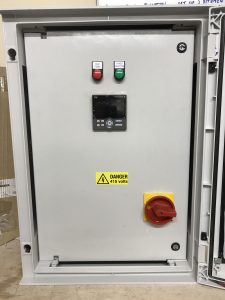

Typical Panel View – Front

Control Panels

We manufacture control panels in-house for virtually all applications.

Our panels are capable of working with the latest electronic controllers or standard mechanical thermostats.

Typical Panel View – Front

Typical Panel View – Interior

Valves and Pumps

Valves & Pumps

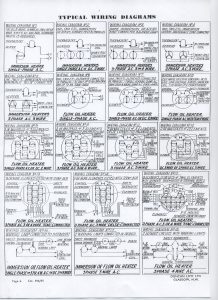

Wiring Diagrams

Placeholder for various wiring diagrams, will be updated as required.
